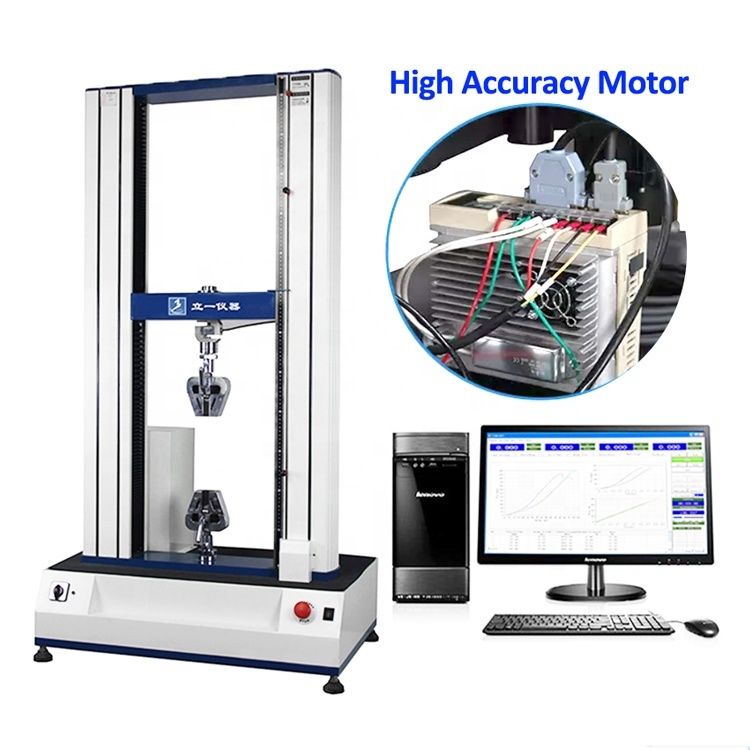

Liyi Extensometer Tensile and Compression Tester 50kn Universal Testing Machine
Product Overview
The Liyi 50kn Universal Testing Machine is designed for testing various materials (both finished and semi-finished products) to measure tensile strength, compression, elongation, stripping force, tear strength, and bending strength.
Key Specifications

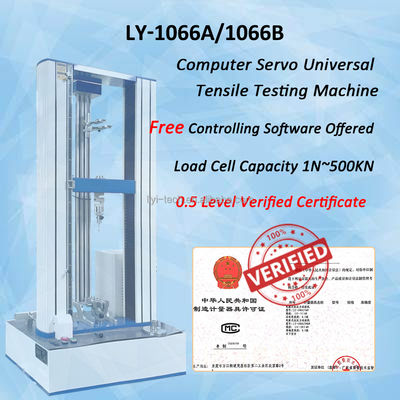

| Model |
LY-1066A |
LY-1066B |
| Accuracy Class |
0.5 (with Verified Certificate) |
|
| Optional Load Cell |
1,2,5,10,20,50,100,200,500,1000,2000,5000kg |
|
| Max Load Capacity |
5000KG |
2000KG |
| Resolution |
1/250,000 |
1/150,000 |
| Force Relative Error |
±0.5% |
|
| Test Speed Range |
0.1~500mm/min |
50~500mm/min |
| Motor |
Panasonic Servo Motor |
AC Inverter Motor |
| Test Stroke (contain clamps) |
1200mm |
|
Technical Attributes
| Attribute |
Value |
| Warranty |
12 months |
| Customized Support |
OEM, ODM, OBM |
| Power |
750W |
| Accuracy |
0.5% |
| Voltage |
220V, 380V, 240V, 110V |
| Type |
Testing machine |
| Protection Class |
IP56 |
| Application |
Universal tensile |
| Color |
Customer Required |
| Machine Type |
Servo Material Testing Machine |

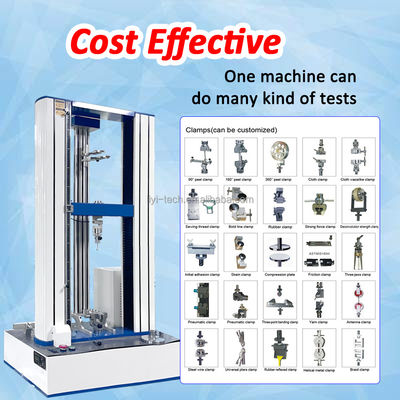

| Grips |
Customize according to customer requirements |
| Effective Pull Space |
1200mm (contain grips) |
| Capacity |
1,2,5,10,20,50,100,200,500,1000,2000KG optional (5000kg,10T customize) |
| Accuracy Level |
0.5% |
Product Images
Manufacturer Information
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental equipment. With advanced technology, experienced technical management personnel, and efficient professional service staff, we maintain fine quality management and a perfect after-sales service system.

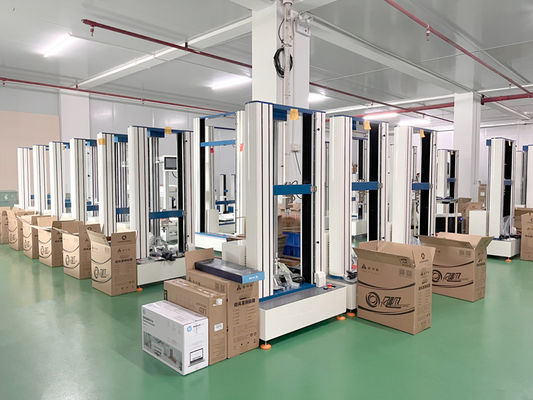

Our company mainly produces simulated environmental testers, plastic and rubber testers, and other materials testing equipment for various industries. Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
Frequently Asked Questions
1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional and largest manufacturers of testing equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2 months extension to account for sea transportation time.
If your machine requires service, you can contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary, and provide a solution within 24 to 48 hours after confirming the issue.
2. What's the delivery term?
For standard machines in stock, we can ship immediately. For out-of-stock standard machines, typical delivery time is 15-20 working days after deposit receipt. We can make special arrangements for urgent orders.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the machine.
4. How can I install and use the machine?
We provide an English operation video via email with each order. Most machines are shipped fully assembled - you only need to connect the power cable to begin testing. If needed, we can also assist with on-site installation.
